RDP Electronics UK - Process Instrumentation

High quality transducers and instrumentation products. Products like Displacement, Pressure, Load and Torque transducers. Electronic Instruments for Process Display and Control.



Universal Load Cells - RDP Electronics UK

RDP Electronics UK - Process Instrumentation



Other Products - LVDT Displacement Transducers. Load Cells, Pressure Transducers, LVDT Signal Conditioning and Acceleration Sensors

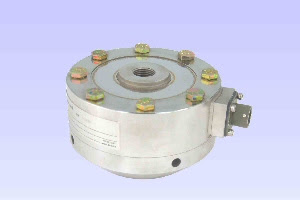

Tension/Compression Load Cell (Universal Load Cell). Model 47 Features Very high accuracy and is encapsulated in Stainless steel. It has a High overload capacity and also Fatigue rated.



Read more How it Works - Strain Gauge Load Cell.



Universal Load Cells - RDP Electronics



A load cell should be mounted on a hard, flat surface. Tension/compression load cells measure the force applied to the centre threads of the load cell.

Specifications Include


  • Excitation/supply (calibrated) 10Vdc

  • Output 2mV/V

  • Bridge resistance 350 Ohms (SLC47/000250 = 700 Ohms)

  • Repeatability ±0.01% F.S.




RDP Electronics Ltd

Grove Street, Heath Town, Wolverhampton, West Midlands, WV10 0PY, UK.
